77137 Trakrite Camber Bar

EU Registered Design Product Video available

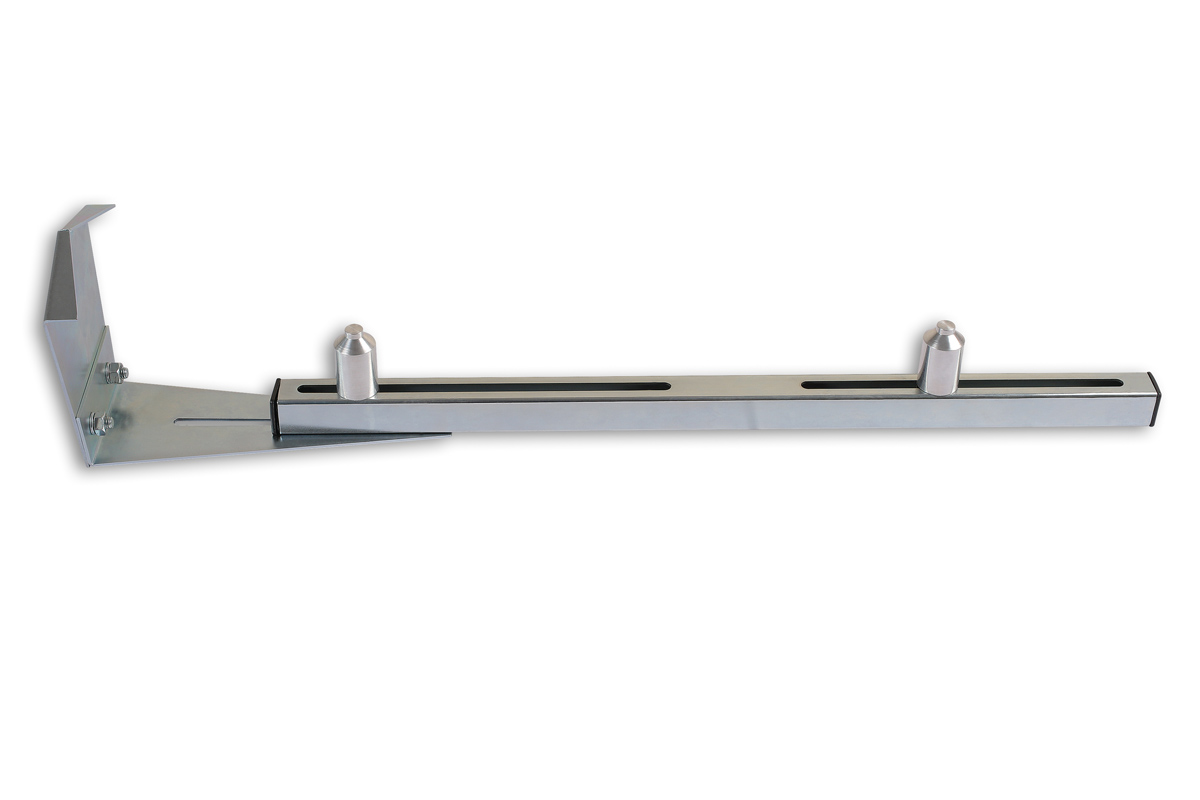

The Trakrite camber bar allows either of the Gunson camber gauges to be used with the wheels on the vehicle and the vehicle sitting on the ground. It is ideal for alloy wheels when the magnetic base of the camber gauge cannot be attached to the wheel hub. The bar is fully adjustable and can either be hung onto the tyre or held in place by hand to provide a precise base point for measurement. When the gauge is levelled and set up, the camber angle, castor and KPI can be clearly read from the gauge. Designed by Gunson in the UK, the Trakrite camber bar makes it quick and easy to take important measurements, even on alloys.

  • Ideal for quick checking of camber, caster and KPI when used with Gunson gauges, Part Nos. 77099, 77066.
  • The camber bar is fully adjustable for wheels up to 18 inch in diameter and designed to hang on the tyre giving hands free operation.
  • Where the vehicle wheel arch is too low for the camber bar to hang on the tyre it can still be used without the top bracket (held in place by hand).
  • For car and light commercial use.
  • EU Registered Design.
TSP: £83.26 ex VAT £99.91 inc VAT

The Trakrite camber bar allows either of the Gunson camber gauges to be used with the wheels on the vehicle and the vehicle sitting on the ground. It is ideal for alloy wheels when the magnetic base of the camber gauge cannot be attached to the wheel hub. The bar is fully adjustable and can either be hung onto the tyre or held in place by hand to provide a precise base point for measurement. When the gauge is levelled and set up, the camber angle, castor and KPI can be clearly read from the gauge. Designed by Gunson in the UK, the Trakrite camber bar makes it quick and easy to take important measurements, even on alloys.

  • Die Sturzeinstellhilfe ist für Räder bis 18 Zoll Durchmesser vollständig verstellbar. Für die freihändige Funktion hängt sie am Reifen.
  • Ist das Radhaus des Fahrzeugs zu niedrig, um die Sturzeinstellhilfe am Reifen einzuhängen, kann sie trotzdem ohne die obere Halterung verwendet werden (von Hand gehalten)
  • Für Autos und leichte Nutzfahrzeuge
  • Ideal für die schnelle Überprüfung von Sturz, Nachlauf und Spreizungswinkel bei Verwendung mit Gunson 77099/77066
  • Entwickelt in Großbritannien
TSP: £83.26 ex VAT £99.91 inc VAT

Conçu pour s'utiliser avec le Gunson 77099 et 77066 avec les roues sur le véhicule et ce dernier reposant sur le sol

  • La barre de carrossage est entièrement réglable pour des roues d'un diamètre allant jusqu'à 18 pouces et est conçue pour s'accrocher sur le pneu, ce qui permet une utilisation mains libres.
  • Lorsque le passage de roue est trop bas pour que la barre de carrossage puisse s'accrocher sur le pneu, elle peut quand même s'utiliser sans le crochet supérieur (maintenue en place à la main).
  • Pour utilisation sur voitures de tourisme et véhicules commerciaux légers.
  • Idéale pour une vérification rapide du carrossage, de la chasse et du KPI lors d'une utilisation avec Gunson 77099/77066.
  • Conception déposée UE.
TSP: £83.26 ex VAT £99.91 inc VAT

Ontwikkeld voor gebruik met de Gunson 77099 en 77066 met de wielen bevestigd, terwijl het voertuig op de grond staat

  • De camberbalk is volledig verstelbaar voor wielen met een diameter tot 18 inch, en bedoeld om aan de band te hangen, zodat er handsfree kan worden gewerkt.
  • Wanneer de wielkast van het voertuig te laag is om de camberbalk aan te hangen, kan hij nog steeds worden gebruikt, in dat geval zonder de bovenste beugel (deze wordt dan met de hand op zijn plaats gehouden).
  • Voor personenauto's en lichte bedrijfswagens.
  • Ideaal om snel camber, caster en KPI te controleren bij gebruik in combinatie met de Gunson 77099/77066.
  • EU-geregistreerd ontwerp.
TSP: £83.26 ex VAT £99.91 inc VAT
 Buy Locally

Useful Downloads


Press Release
New from Gunson: the Trakrite Camber Bar

The new Trakrite camber bar (part number 77137) is a registered design and allows either of the Gunson camber gauges to be used with the wheels on the vehicle and the vehicle sitting on the ground. No problem usually with steel wheels but the magnetic base of the gauge will not clamp onto alloy wheels!

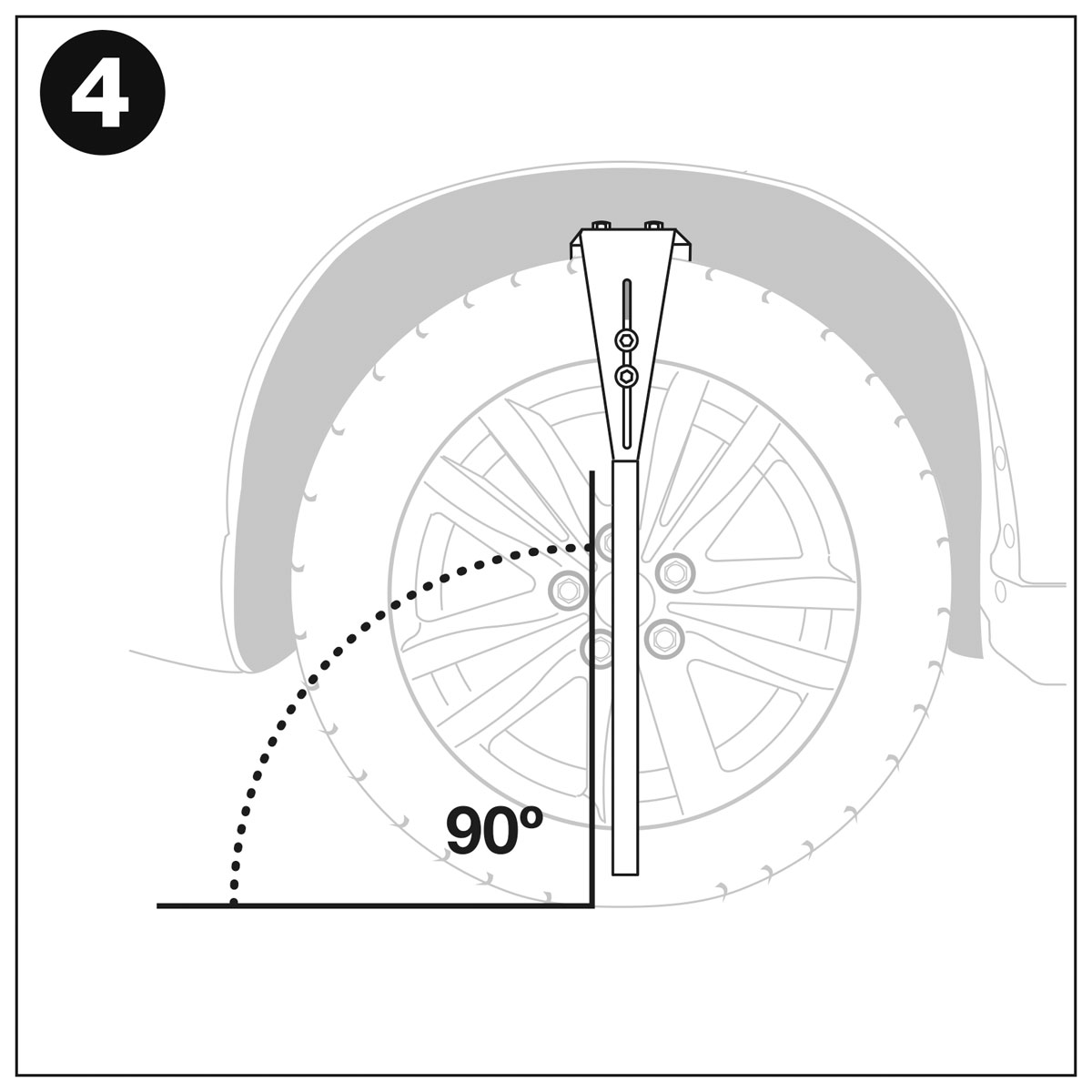

The Trakrite camber bar solves this problem. It is assembled in seconds and full instructions are included. It is easy to adjust and use; the top bracket allows for adjustment to the profile of the tyre, then adjust the wheel spacers to the top and bottom edges of the wheel rim — this now gives a solid metal mounting base to mount either of the Gunson camber gauges ( Camber Gauge 77066 or the Magnetic Camber, Castor & King-pin gauge 77099).

When the gauge is levelled and set up, the camber angle (negative or positive) can be clearly read from the gauge. If the wheel arch is too low and there is not enough clearance for the camber bar to hang onto the tyre, the camber bar can still be used by removing the top bracket and holding in place by hand.

Designed by Gunson in the UK, the Trakrite Camber Bar is available now from your local Gunson stockist.
